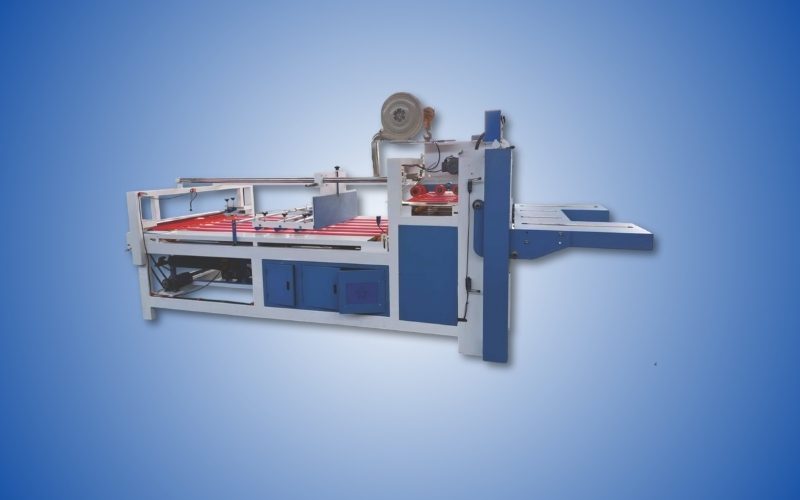

Semi Automatic Gluer
Enquire Now
Description：
The Semi-Automatic Gluer is specially designed for flap gluing of corrugated boxes, ensuring strong and accurate adhesion. Equipped with photoelectric sensors, it controls carton stacking height, counting, and ensures precise sheet feeding. The automatic lifting of the sheet feeding table and preset sheet delivery improve efficiency, while the copper and stainless alloy steel glue applicator prevents leakage and delivers consistent performance. With a production speed of 40 m/min and compatibility for a wide range of sheet sizes, this machine is ideal for reliable and efficient carton gluing operations.
Characteristics
- Designed for flap gluing of corrugated boxes
- Photo electric sensor to control the stacking height of carton and counting the unit.
- Equipped with auto lifting of sheet feeding table. Sheet delivery is according to preset quantity.
- Photo Electric Sensor on feeding table ensures correct feeding unit.
- Glue applicator is made from copper & stainless alloy steel allowing to glue leakage.
Technical Specifications
| Machine Size (mm) | 2600 |
|---|---|
| Power required (Kw) | 2.5 |
| Production speed (mtr./min.) | 40 |
| Maximum feeding size (mm) | 2600 |
| Minimum feeding size (mm) | 340 |
| Weight (approx.) in Kgs | 2300 |
| Floor area (mm) L x W x H | 4800 x 2000 x 2000 |
