Automatic Partition Assembler Machine
Miscellaneous Machine
View Catalogue
Enquire Now
Description：

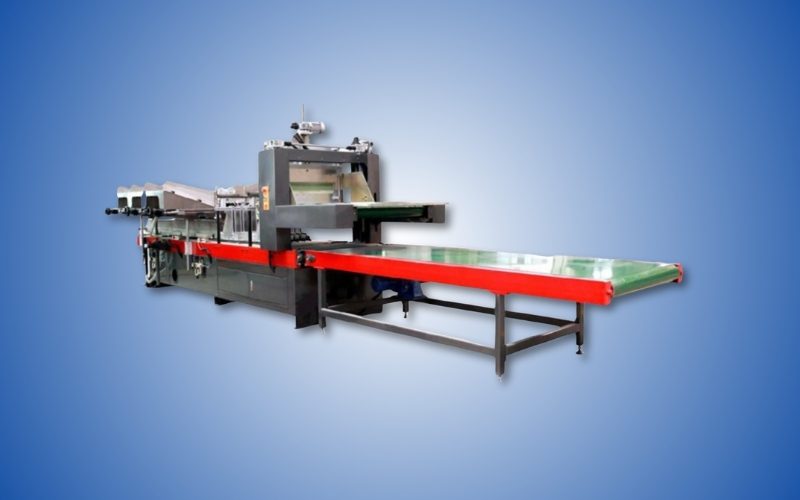

The Partition Assembly Machine is designed for fast and precise insertion of dividers into corrugated cartons, streamlining the packaging process with ease. Featuring computer-controlled distance adjustment, it ensures accurate and consistent divider placement.
The machine offers automatic feeding and conveying, with all feeding unit lifting managed conveniently through a touchscreen interface. With the added ability to store multiple orders, it delivers efficiency and flexibility for high-volume packaging operations.
Ideal for packaging manufacturers handling fragile or multi-compartment products, the Partition Assembly Machine combines automation, precision, and user-friendly operation to boost productivity and reduce manual effort.
Characteristics：
- Easy operation and distance of divider inserting is controlled by computer
- All feeding unit’s lifting is controlled by a touch screen. Feeding and conveying is operated automatically
- Orders storage is available
Technical Specifications：
| Powe supply | 380 V / 50 Hz | |
|---|---|---|
| Power | ||
| Partitions form | 1~3 X 1~15 | |
| Partitions size (mm) | L:150~450 W:150~450 H:80~300 | Thickness of sheet 1.5 ~ 7 (cardboard in regular specification, die cut in regular specification of cardboard) |
| Interval A=50~150 | ||
| Interval B=20~150 | ||
| Speed | 40~60 Sets / Min | |
| Dimension (mm) | 6000 x 2000 x 2300 | |
| Weight (Kg) | 2800 | |
